Actual 4A0-113 Exam Recently Updated Questions with Free Demo [Q33-Q57]

NEW QUESTION 33
What best describes the type of packets used by OSPF routers to exchange updates on a point-to-point link?

IP packets sent to an IP multicast address.

Ethernet frames sent to an Ethernet multicast address.

IP packets sent to an IP unicast address.

UDP packets sent to an IP multicast address.

NEW QUESTION 34
Which of the LSA types stay within an OSPF area and are not exported outside of the area? (Choose all that apply)

Router LSA

Network LSA

Summary Network LSA

Summary Router LSA

NEW QUESTION 35
Exhibit

Given the two configurations shown, identify the two incorrect statements below: (Choose two)

Both routers will generate OSPF Hello packets.

The system interface is missing in one configuration so OSPF will not operate correctly.

The interface type settings differ, but OSPF will still operate correctly.

Metric values differ, but this does not prevent OSPF operation.

NEW QUESTION 36
What type of OSPF router generates a type 2 LSA?

Area Border Router

Autonomous System Boundary Router

Designated Router

All routers within an OSPF area.

NEW QUESTION 37
Which of the following best describes the type of packets used by OSPF routers to exchange updates on a point-to-point link?

IP packets sent to an IP multicast address.

TCP packets sent to an IP multicast address.

IP packets sent to an IP unicast address.

UDP packets sent to an IP multicast address.

NEW QUESTION 38
An OSPF ASBR must have at least one interface in the backbone area (area 0)

True

False

NEW QUESTION 39
Click the exhibit button.

Which of the following would correctly configure routers R2, R3, and R4?

Option A

Option B

Option C

Option D

NEW QUESTION 40
An OSPF adjacency is stuck in the exstart state. What is the most likely cause?

The MTU does not match on both interfaces.

OSPF is not enabled on one of the routers.

The router ID is the same on both routers.

An OSPF Hello has not been received from the neighbor.

The interfaces are configured as point-to-point on one side and broadcast on the other.

NEW QUESTION 41
Which of the following concerning OSPFv3 is TRUE?

OSPFv3 uses MD5 Authentication.

Router LSAs carry IPv6 prefix information.

NSSA is supported in OSPFv3.

OSPFv3 uses a 64-bit router ID.

NEW QUESTION 42
In an IP datagram, which of the following fields identifies the receiving application?

The protocol field of the transport layer header.

The port field of the transport layer header.

The protocol field of the network layer header.

The port field of the network layer address.

NEW QUESTION 43
When an OSPF adjacency is stuck in the “ExchStart” state, what is the most likely cause?

The MTU does not match on both interfaces

OSPF is not enabled on one of the routers

The Router ID is the same on both routers

A OSPF Hello has not been received from the neighbor

NEW QUESTION 44

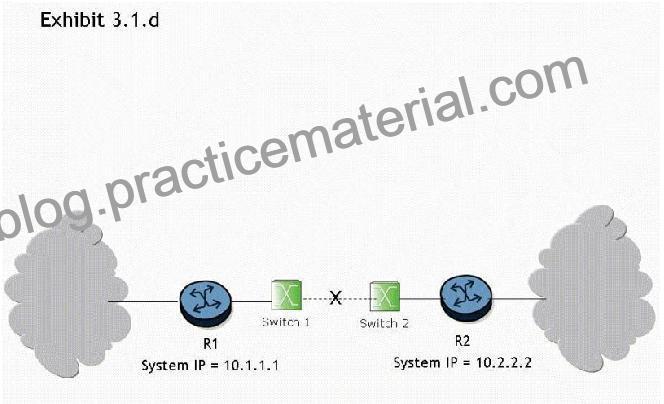

Click the exhibit button.

What triggers convergence of the routing protocol when the link between switch 1 and switch 2 goes down?

Convergence is triggered when the adjacency between routers R1 and R2 drops as a result of Hello timeouts. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

Convergence is triggered when the physical interfaces between routers R1 and R2 go down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

Convergence will not be triggered because switches cannot run routing protocols between them.

Convergence is triggered when the switches notify the routers about the link state information. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

Convergence is triggered when an LSA is sent from router R1 to router R2 to indicate that the link is down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

NEW QUESTION 45
What is the default priority value used for electing the DR on an Nokia 7750 SR running OSPF on an Ethernet?

Priority of 0

Priority of 1

Priority of 64

Priority of 255

NEW QUESTION 46

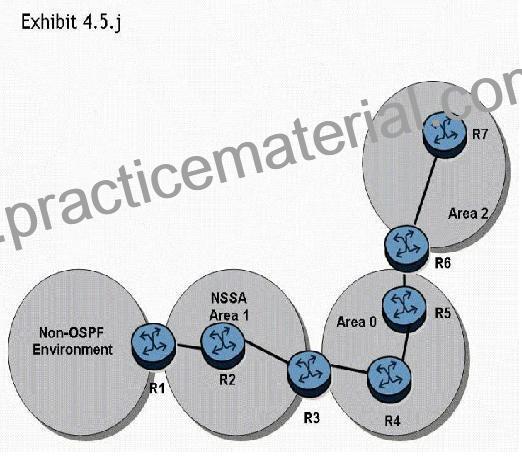

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Which of the following statements regarding the OSPF LSAs in the network is true?

Router R1 generates a type 5 LSA that is flooded through all OSPF areas.

Router R1 generates a type 7 LSA that is flooded through all OSPF areas.

Router R1 generates a type 5 LSA that is flooded through area 1. Router R2 generates a type 7 LSA that is flooded through areas 0 and 2.

Router R1 generates a type 7 LSA that is flooded through area 1. Router R3 generates a type 5 LSA that is flooded through areas 0 and 2.

NEW QUESTION 47
Click the exhibit button.

What can you deduce from the show command on router R6?

The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment.
The DR for this segment would be the router with router ID 10.10.10.5.

The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment; however, this command does not indicate whether 10.10.10.3 or 10.10.10.5 is the DR or BDR.

The router R6 interface is in a multi-access segment. It is the BDR, which is why it is not adjacent to the other routers.

The router R6 interface is in a multi-access segment. It is neither the DR nor the BDR for the segment.The DR for this segment would be the router with router ID 10.10.10.3.

NEW QUESTION 48
NSSA LSA packets are what type within an NSSA area, and are converted to what other type at the ABR?

They are type 7 within the area and are not modified at the ABR

They are type 5 within the area and converted to type 3 at the ABR

They are type 5 within the area and are not modified at the ABR

They are type 7 within the area and converted to type 5 at the ABR

NEW QUESTION 49
Which type of OSPF LSA has the following characteristics: It is flooded only within the area it originates from and can be originated by any OSPF router within the area (including non-DR routers).

Type 1 Router LSA

Type 2 Network LSA

Type 3 Summary LSA

Type 4 ASBR LSA

NEW QUESTION 50
Which LSA type is not found in point-to-point only OSPF networks?

Type 1 Router LSA

Type 2 Network LS A

Type 3 Summary LSA

Type 5 External LSA

NEW QUESTION 51
Which of the following statements concerning OSPFv3 is false?

MD5 Authentication is not supported.

Router LSAs do not carry IPv6 prefix information

NSSA is not supported in OSPFv3.

OSPFv3 uses a 32-bit router ID.

NEW QUESTION 52
Click the exhibit button.

192.168.3.1 is a loopback interface on router R2 and is distributed to OSPF area 0, but the ping fails from router R3. Which of the following is a possible solution to the problem?

Add the “originate-default-route” option in the NSSA area configuration on router R3

Add the “summaries” option to the NSSA area configuration on router R1

Make a static route on router R1 to 192.168.3.1

Make a default route on router R2

NEW QUESTION 53

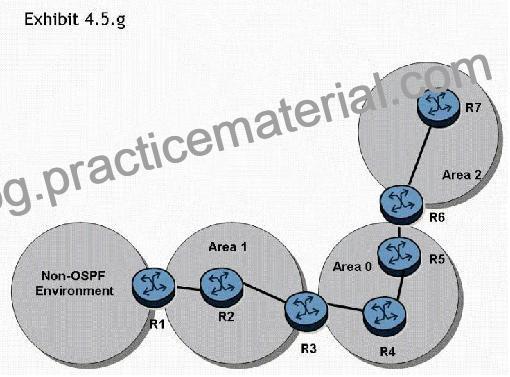

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?

Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.

Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.

Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.

NEW QUESTION 54
What is the source IP address in an OSPF update?

224.0.0.6

The system address of the router

224.0.0.5

The unicast IP address of the interface the update is being sent on.

NEW QUESTION 55
Which of the following statements concerning OSPFv3 is false?

MD5 Authentication is not supported.

Router LSAs do not carry IPv6 prefix information

NSSA is not supported in OSPFv3.

OSPFv3 uses a 32-bit router ID.

NEW QUESTION 56
A static route is created using the command “static-route 0.0.0.0/0 next-hop 3.3.3.1”. What command could be used to test the static route on a Nokia 7750 SR?

Ping static 3.3.3.1

Ping static 0.0.0.0/0

Ping 3.3.3.1

Ping 0.0.0.0

NEW QUESTION 57
What are the three databases maintained by a Link State Protocol?

Neighbor, adjacency, route table

Neighbor, topology, forwarding

Topology, routing, forwarding

There are only two databases: adjacency and topology
