Free CCNP Service Provider 300-510 Ultimate Study Guide (Updated 101 Questions)

Get to the Top with 300-510 Practice Exam Questions

NEW QUESTION 38
Refer to the exhibit.

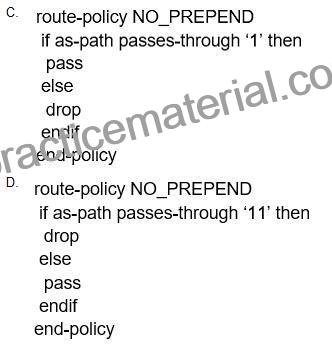

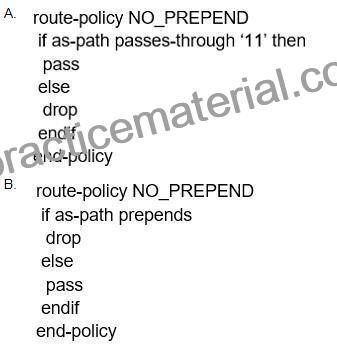

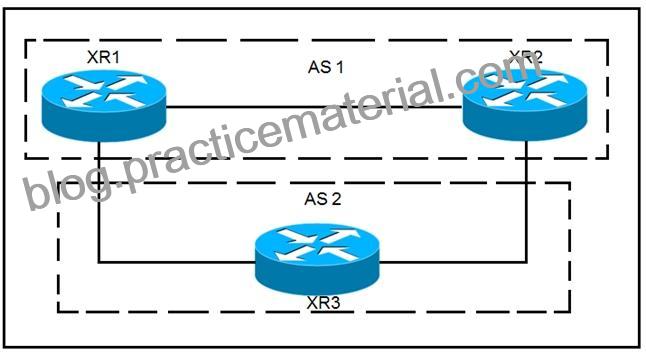

XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3. A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix. A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed. Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?

Option A

Option B

Option C

Option D

NEW QUESTION 39

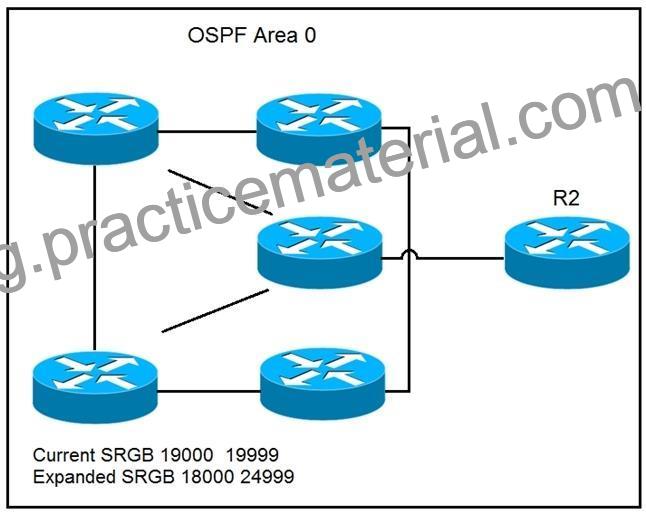

Refer to the exhibit. A network operator wants to expand the segment routing global block in upcoming maintenance.
The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain.

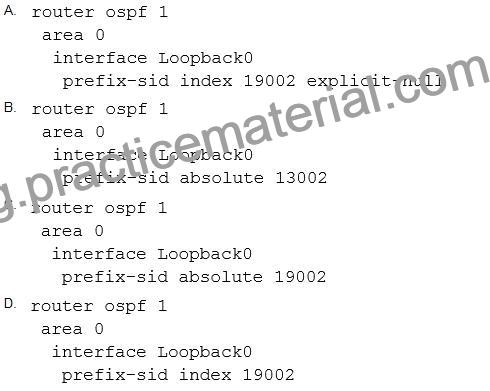

Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?

Option A

Option B

Option C

Option D

NEW QUESTION 40
In Cisco IOS-XR, the maximum-prefix command, to control the number of prefixes that can be installed from a BGP neighbor, is configured under which configuration mode?

RP/0/RSP0/CPU0:P2(config-bgp)#

RP/0/RSP0/CPU0:P2(config-bgp-af)#

RP/0/RSP0/CPU0:P2(config-bgp-nbr)#

RP/0/RSP0/CPU0:P2(config-bgp-nbr-af)#

NEW QUESTION 41
Refer to the exhibit.

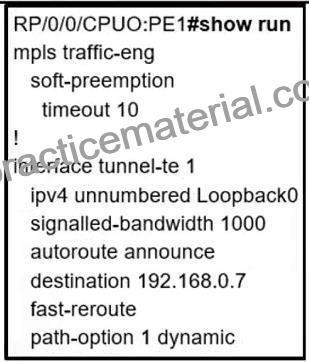

A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired. Where should the soft preemption be applied to solve the issue?

on the tail-end device for tunnel-te1 192.168.0.7

under the tunnel-te1 interface on PE1

explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting

Under the interface Loopback0 necessary for this deployment type.

NEW QUESTION 42
Refer to the exhibit.

A service provider technician is working on a multicast issue for a customer. While checking the multicast table, the technician notices that no flags are present for the (1.1.1.1, 239.1.1.1) entry, yet flags are present for the (1.1.1.1, 232.1.1.1) entry.
Which factor might explain this issue?

Only the administratively scoped range is permitted

Only ASM is permitted

Only the default SSM range is permitted

Only GLOP is permitted

NEW QUESTION 43

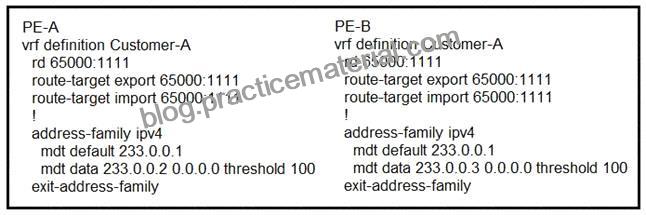

Refer to the exhibit.

Which tree does multicast traffic follow?

shared tree

MDT default

source tree

MDT voice

NEW QUESTION 44
Which two statements about mapping multicast IP addresses to MAC addresses are true? (Choose two.)

All mapped multicast MAC addresses begin with 0x0100.5E

The router performs the mapping before it hands the packet off to a switch

All multicast MAC addresses end with 0x0100.5E

The mapping process may generate overlapping addresses, which can cause receivers to receive unwanted packets

All destination MAC addresses begin with an octet of binary 1s

NEW QUESTION 45

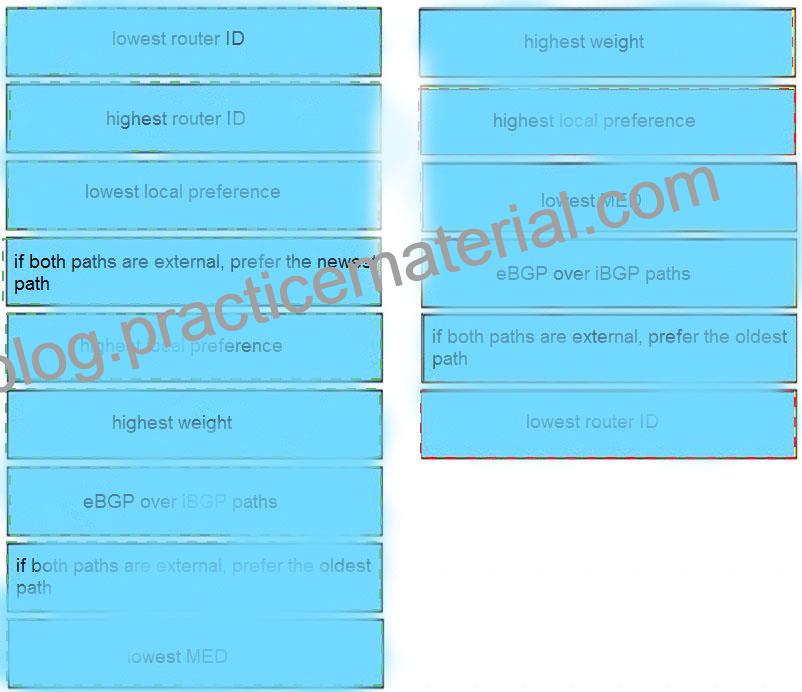

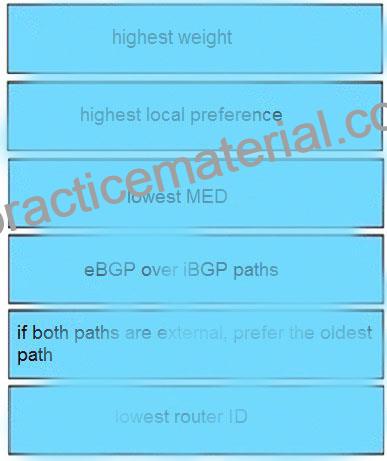

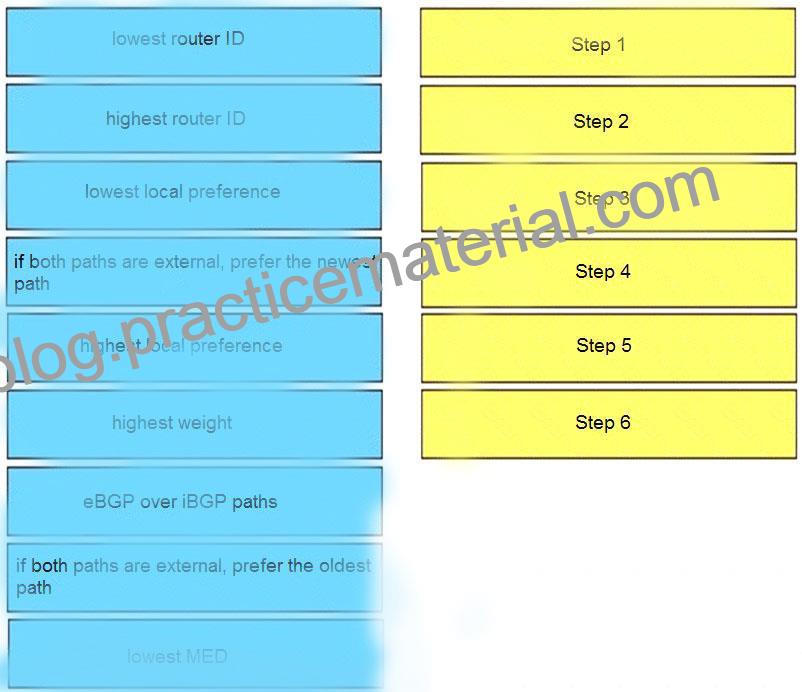

Drag and drop the attributes for the BGP route selection on the left into the correct order on the right. Not all options are used.

NEW QUESTION 46
Refer to the exhibit.

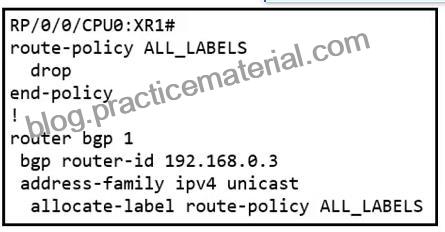

A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

Remove the allocate-labels command.

Reconfigure the route-policy ALL_LABELS to match all after the drop.

Reconfigure the route-policy ALL_LABELS to pass.

Remove the route policy and only configure “allocate-label”.

NEW QUESTION 47

Refer to the exhibit. Router 1 is a core ABR in a Cisco Unified MPLS environment. All of the router 1 BGP peers are established, but traffic between customers is failing. Which BGP configuration must be added to the configuration?

It must be configured for graceful restart

It must be configured with a route reflector

It must be configured with send labels

It must be configured with PIC edge

NEW QUESTION 48
Refer to the exhibit.

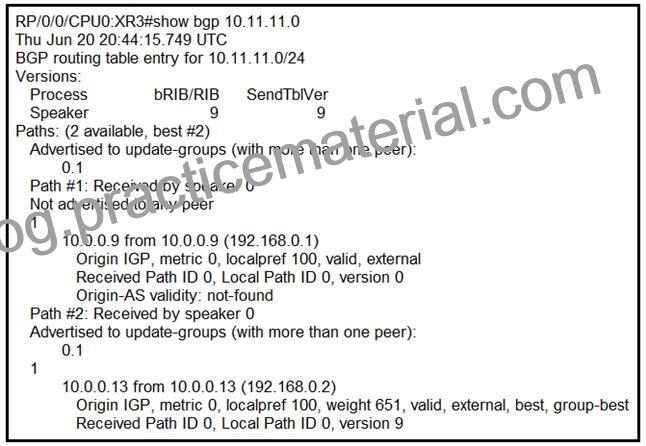

A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of
10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

weight of 0 on the prefix coming from 192.168.0.2

lower local preference on the prefix coming from 192.168.0.2

higher local preference on the prefix coming from 192.168.0.1

weight of 100 on the prefix coming from 192.168.0.1

NEW QUESTION 49
Refer to the exhibit.

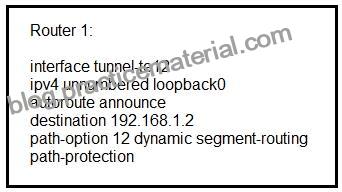

Router 1 has established an SR-TE tunnel with router 2. Which statement describes this configuration?

Router 1 has a list of labels used to explicitly lay out a path to router 2.

Router 1 and router 2 have a bidirectional tunnel set up with dynamic path selection.

Router 1 is the head-end tunnel and has dynamically chosen a path to router 2.

Router 2 is the head-end tunnel and has explicitly set a path to router 1.

NEW QUESTION 50

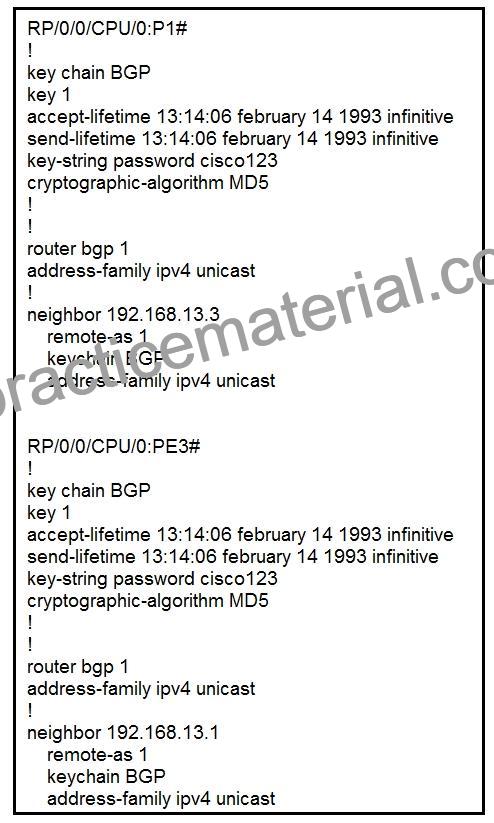

Refer to the exhibit.

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)

Change MD5 to HMAC-SHA1-12

Change MD5 to HMAC-ESP

Change MD5 to SHA-1

Change MD5 to HMAC-MD5

Remove the send and accept lifetime under key 1

NEW QUESTION 51

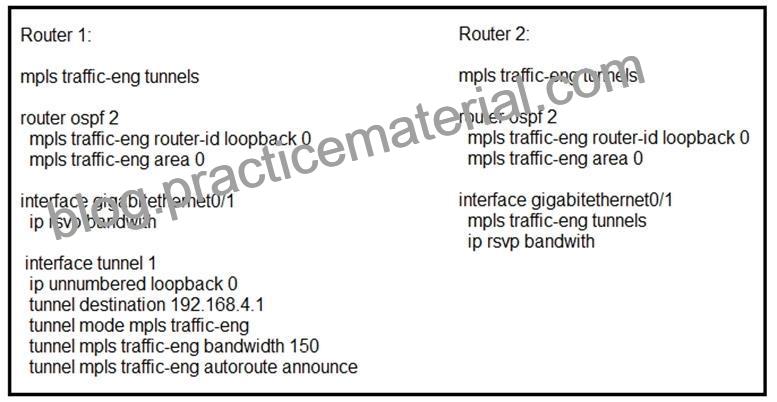

Refer to the exhibit. Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel has failed.
Which statement about this configuration is true?

Router 1 must define an explicit path to router 2

Router 1 and router 2 must define the RSVP bandwidth reserved on the physical interfaces

Router 2 must have a tunnel interface created with router 1 as the destination

Router 1 must have Cisco MPLS TE enabled on interface gigabitethernet0/1

NEW QUESTION 52

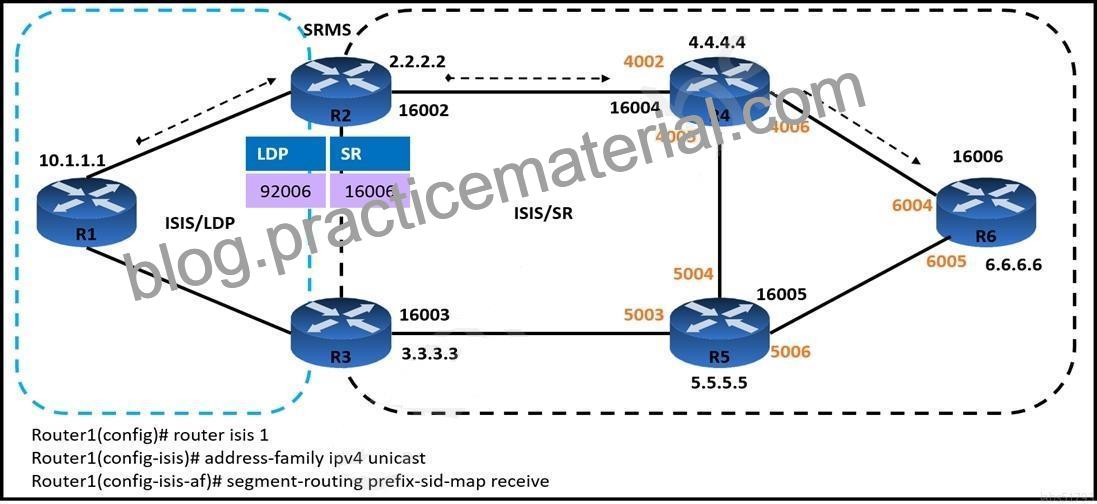

Refer to the exhibit. An engineer is configuring service traffic from router R1 to R6 as shown.
Which additional configuration must the engineer implement so that the LDP and SR domains will participate and interwork with each other?

Router2(config)# segment-routing
Router2(config-sr)# ldp mapping-server
Router2(config-sr-ms)# prefix-sid-map
Router2(config-sr-ms-map)#
Router2(config-sr-ms-map-af)# 2.2.2.2/32 500 range 4

Router2(config)# segment-routing
Router2(config-sr)# sr mapping-server
Router2(config-sr-ms)# ldp-sid-map
Router2(config-sr-ms-map)# address-family ipv4
Router2(config-sr-ms-map-af)# 10.1.1.1/32 500 range 50

Router2(config)# segment-routing
Router2(config-sr)# mapping-server
Router2(config-sr-ms)# prefix-sid-map
Router2(config-sr-ms-map)# address-family ipv4
Router2(config-sr-ms-map-af)# 10.1.1.1/32 500 range 50

Router2(config)# segment-routing
Router2(config-sr)# ldp mapping-server
Router2(config-sr-ms)# prefix-sid-map
Router2(config-sr-ms-map)# address-family ipv4
Router2(config-sr-ms-map-af)# 2.2.2.2/32 500 range 40

NEW QUESTION 53
Which two conditions must be met before separate ISPs can provide interdomain multicast routing? (Choose two.)

Each ISP must configure MSDP to connect its individual multicast administrative domain to the domains at other ISPs.

Each ISP must dedicate a single router to handle multicast traffic between providers.

Each ISP must replace its RP assignment with a global RP.

Each ISP must configure its network to use PIM-DM.

Each ISP must support intradomain multicast routing.

NEW QUESTION 54

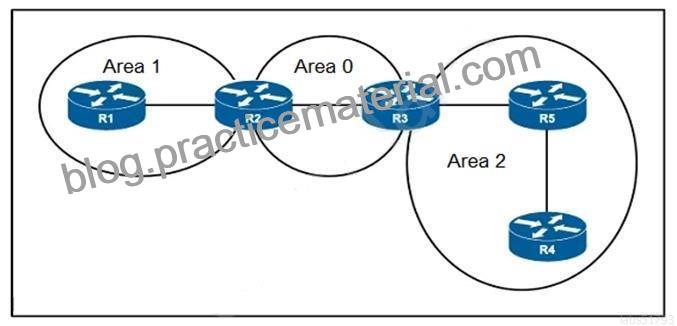

Refer to the exhibit. A network engineer applied configuration on R5 to summarize all OSPF routes, but R4 is still receiving specific routes from R5. The engineer has confirmed that both R5 and R4 routers are configured with correct summarization configuration but R5 Is not sending the summary routes. What action must the engineer take to fix the problem?

Remove summarization configuration on R5 and configure it on R4

Configure a sham link between R4 and R5 to support summarization within Area 2

Move R4 and R5 in separate areas as now they maintain the same link-state database

Clear link-state database on both R4 and R5 routers for summarization to work

NEW QUESTION 55
A network engineer is troubleshooting OSPF multiare
a. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

hierarchical CLI

routing process enabled by default on all interfaces

DR support for topology management

show lp ospf topology command

NEW QUESTION 56
Refer to the exhibit. Which statement about this configuration is true?

Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes

Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS

Router 1 receives only the best path from neighbor 192.168.1.1

NEW QUESTION 57
Refer to the exhibit.

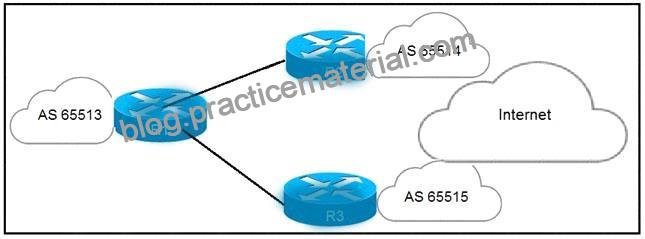

An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?

The MED attribute can be applied on R2 to influence R1 to use it as the primary path.

The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.

The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.

The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.

NEW QUESTION 58

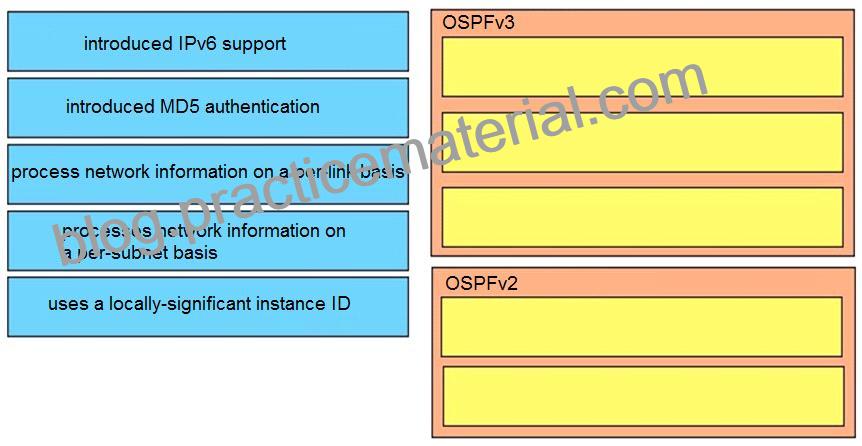

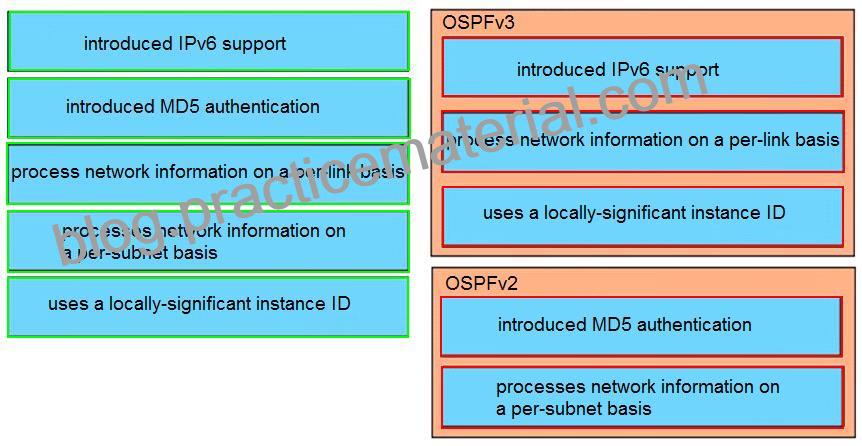

Compare different features between OSPFv2 and OSPFv3. Drag and drop the descriptions of OSPF from the left onto the correct OSPF versions on the right.

NEW QUESTION 59

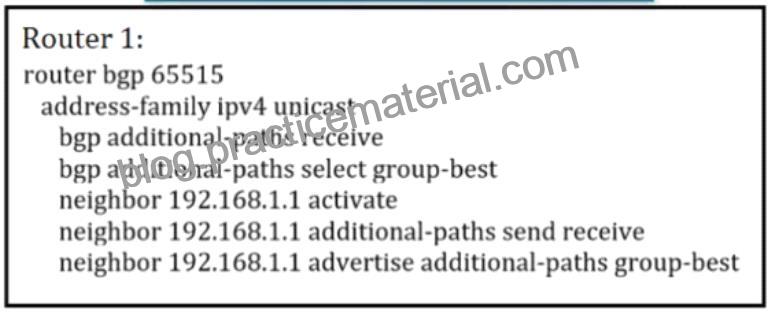

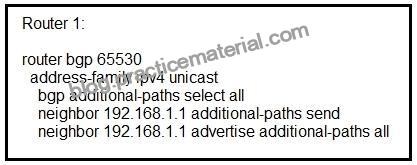

Refer to the exhibit.

An engineer working for a private telecommunication company with an employee id 3977 74 814 implemented the configuration on Router 1. what is the effect of it?

Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

Router 1 sends up to three paths to neighbor 192.168.1.1 for all routes

Router 1 sends only one best path to neighbor 192 168.1.1.

Router 1 receives only one best path from neighbor 192.168.1.1
